The One. The Only. The Original.
The AR-7 was originally designed in 1959 by Gene Stoner of ArmaLite in response to the United States Air Force's need for a compact survival rifle. Following a period of production exclusively for the military, the AR-7 was introduced to the public market. It was featured in the early James Bond movie From Russia With Love, as well as other films.
Charter Arms acquired the rifle from ArmaLite in 1973, marketing it throughout the world. In 1990, Survival Arms, Inc. purchased the company and manufactured the rifle with engineering and material improvements, including the introduction of the sporterized AR-20.
Now AR-7 Industries, LLC will add new innovative models and accessories - enhancing the original design - moving forward into the 21st century of manufacturing.

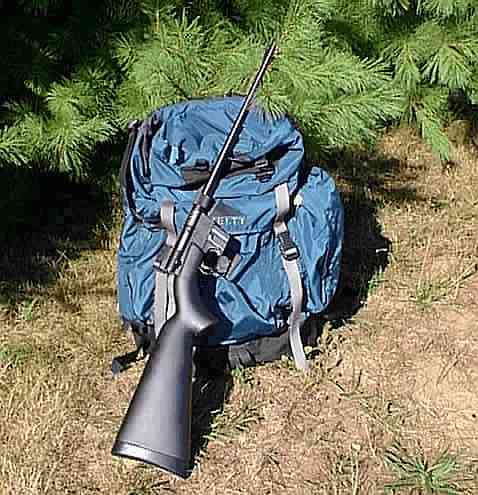

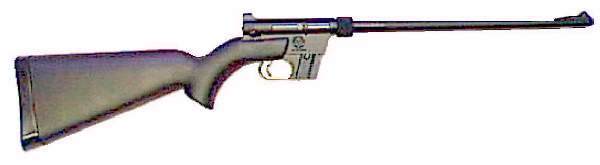

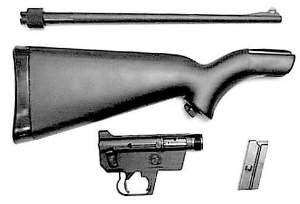

This lightweight sportsman's version of the famous U.S. Air Force survival rifle breaks down in seconds, enabling barrel, action and magazine to fit neatly into its dirt and water resistant stock.
 |
 |
|
When stowed, the AR-7 is only 16 ½" long... less than a foot and a half. It's ideal for backpackers, boaters, bush pilots... anyone who wants the security of an accurate semi-automatic .22LR without lugging a heavy, full size rifle around.
The AR-7's unique self-contained design lets it sit for months without attention. Yet when needed, it's ready to shoot at a moments notice. Assembly is made quick and easy... without tools! Simply attach stock and barrel to action, feed the clip... and fire!
Uses high velocity .22LR rounds. Also features adjustable sights and convenient thumb safety.
Accessories list includes: soft carrying case, collapsible sporter stock, steel barrel, various round magazines, scope rings, a side scope mount plus a sporter conversion kit.
Specifications:
| Caliber: | .22LR - High Velocity |
| Magazine: | 8 round |
| Sights: | Peep Rear / Ramp Front |
| Barrel Length: | 16 in. |
| Stowed Length: | 16 ½ in. |
| Overall Length: | 35 ¼ in. |
| Weight: | 2 lb. 8 oz. (plastic barrel) |
| 3 lb. 7 oz. (steel barrel) |

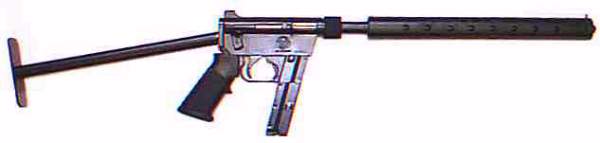

Specifications:
| Caliber: | .22LR - High Velocity |
| Magazine: | 16 round "Flip Clip" |
| Sights: | Peep Rear / Post Front |
| Barrel Length: | 16 in. |
| Overall Length: | 32 7/8 in. |
| Weight: | 3 lb. 14 oz. |

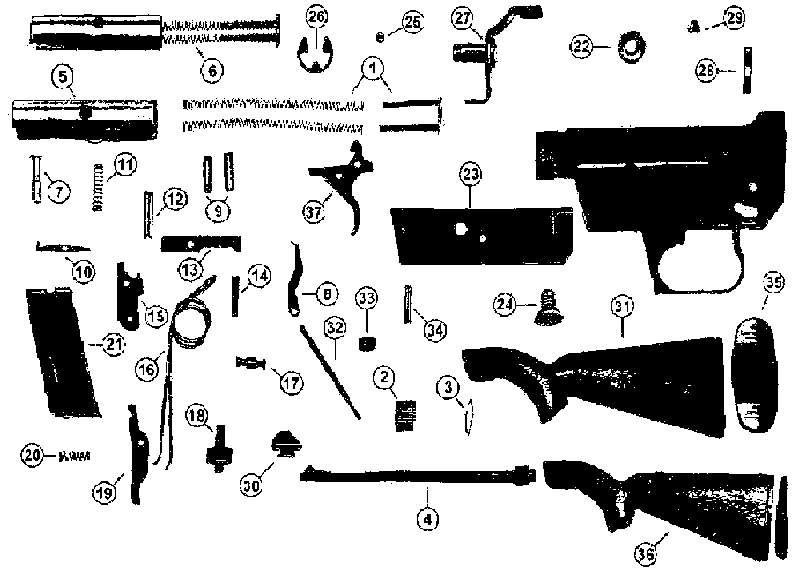

FACTORY
REPLACEMENT PARTS
| VIEW | PART# | DESCRIPTION |
| 1 | 2252/2253 | Action Springs (2) and Guide (sold as set) |
| 2a | 2247 | Barrel Nut Black Finish |
| 2b | 2246 | Barrel Nut Silvertone Finish |
| 2c | 2245 | Barrel Nut Camouflage Finish |
| 3 | 2312 | Barrel Nut Lock Washer |
| 4a | 2316 | Barrel Assembly Black Plastic w/ steel liner, washer, nut and sights |
| 4b | 2395 | Barrel Assembly Silvertone Plastic w/ steel liner, washer, nut and sights |
| 4c | 2313 | Barrel Assembly Camouflage Plastic w/ steel liner, washer, nut and sights |
| 5 | 2230 | Bolt |
| 6 | 2314 | Bolt Assembly Complete |
| 7 | 2232 | Charging Handle |
| 8 | 2243 | Ejector |
| 9 | 2308 | Ejector Pin / Trigger Pivot |
| 10 | 3354 | Extractor |
| 11 | 2254 | Extractor Spring |
| 12 | 2326 | Extractor Assembly Pin |
| 13 | 2325 | Firing Pin |
| 14 | 2327 | Firing Pin Assembly Pin |
| 15 | 3351 | Hammer |
| 16 | 2248 | Hammer/Trigger Spring |
| 17 | 2322 | Hammer/Trigger Spring Support Pin |
| 18 | 2244 | Hammer Pivot Pin |
| 19 | 3352 | Magazine Latch |
| 20 | 2251 | Magazine Latch Spring |
| 22 | 2311 | Rear Sight Press Nut |
| 23a | 2236 | Receiver Side Plate (Black) |
| 23b | 2235 | Receiver Side Plate (Silvertone) |
| 23c | 2234 | Receiver Side Plate (Camouflage) |
| 24 | 2250 | Receiver Side Plate Screw |
| 25 | 2329 | Safety Detent Ball |
| 26 | 2330 | Safety Snap Ring |
| 27 | 2331 | Safety |
| 28 | 3353 | Sight - Rear |
| 29 | 2249 | Sight - Rear Screw |
| 30 | 2222 | Sight - Front |
| 2223 | Side - Front Ramp for Steel Barrel (with screw) | |
| 31a | 2256 | Stock Complete Black (no takedown screw or cap) |
| 31b | 2257 | Stock Complete Silvertone (no takedown screw or cap) |
| 31c | 2259 | Stock Complete Camouflage (no takedown screw or cap) |
| 32 | 2262 | Stock Takedown Screw |
| 33 | 2260 | Stock Takedown Nut |
| 34 | 2328 | Stock Takedown Roll Pin |
| 35 | 2258 | Stock Outer Butt Cap |
| 36 | 3307 | Buttstock - Complete (with takedown screw, no cap) |
| 37 | 3350 | Trigger |
ACCESSORIES
These accessories will fit all manufactured AR-7 rifles.
| Item# | Description | |
| 3360 | All Steel Barrel - Black Complete (with nut, washer and sight) | |
| 3361 | Aluminum Barrel Shroud (specify for steel or plastic barrel) | |
| 3362 | All Steel Barrel with Aluminum Shroud - Black Complete (with nut, washer and sight) |
 |

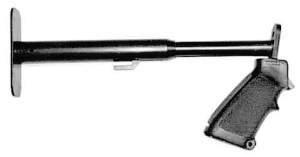

| 3363 | Collapsible Sporter Stock with Pistol Grip (with screws) |
|

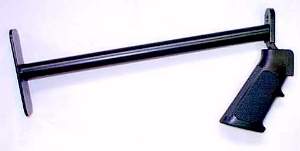

| 3364 | Non-Collapsible Sporter Stock with Pistol Grip (with screws) |
 |

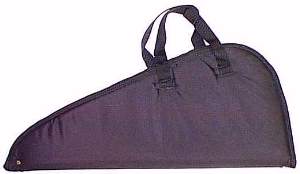

| 3366 | AR-7 Soft Carrying Case |
 |

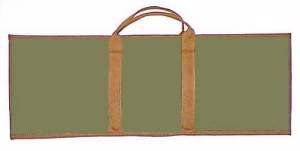

| 3375 | AR-20 Soft Carrying Case - 2 zip compartments |
 |

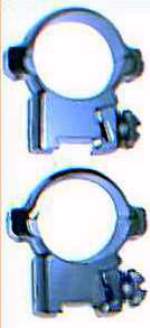

| 3367 | AR-7 Scope Rings - Low (To be used with Side Scope Mount) |
 |
| 3368 | Ar-7 Scope Rings - See Thru (to be used with Side Scope Mount) | |
| 3369 | Side Scope Mount (mounts onto existing side receiver plate using existing side receiver plate screw to give a top rail for mounting a scope) |
 |
| 3374 | 3-9x42mm Scope - Compact 1" Tube - Black Matte | |
| 3374 | 2-6x30mm Scope - Wide Angle Compact 1" Tube - Black Matte |
 |
| 3370 | 4x25mm Scope - Compact 1" Tube - Black Matte | |
| 3371 | 8 Round .22LR Metal Clip |
 |

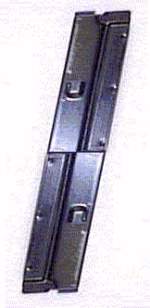

| 3372 | 16 Round .22LR Metal "Flip Clip" |
 |
| 3376 | 32 Round .22LR Metal "Quad Clip" |
 |

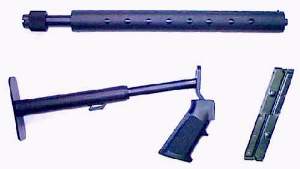

| 3373 | Sporter Conversion Kit (Aluminum Shrouded Steel Barrel, Collapsible Sporter Stock with Pistol Grip, 16 Round "Flip Clip") |
 |
